As a guide, we recommend every boat should always carry at least 3 fenders onboard (larger boats should carry 4-5). The size of fender mostly depends on the length and design of your boat, but ultimately it comes down to personal preference and how the fenders are going to be used. When selecting fenders, the length of your boat, and the following points should be taken into consideration:
Hauraki Inflatable Fender Size Guide:
Boat Length | Mini | Small | Medium | Fatboy | Large | XLarge | Big Bertha |
<10m | ✔️ | ✔️ | |||||
10 - 12m | ✔️ | ✔️ | ✔️ | ✔️ | |||
12 - 14m | ✔️ | ✔️ | ✔️ | ✔️ | |||
14 - 16m | ✔️ | ✔️ | ✔️ | ||||
16 - 20m | ✔️ | ✔️ | ✔️ | ✔️ | |||
20m + | ✔️ | ✔️ | ✔️ |
Fender Specifications:
|
Diameter (mm) |
Side Length (mm) |
Overall Length excl D-rings (mm) |
Weight (kg) |
Approximate Volume (L) |
Material |
Attachments |
Mini |
300 |
600 |
700 |
1.4 |
30 |
1.2mm HD PVC |
1 x small d-ring, 1 x large d-ring |
Small |
300 |
800 |
900 |
1.7 |
44 |
1.2mm HD PVC |
1 x small d-ring, 1 x large d-ring |
Medium |
350 |
1000 |
1100 |
2.5 |
98 |
1.2mm HD PVC |
1 x small d-ring, 1 x large d-ring |
Fatboy |
400 |
800 |
920 |
2.5 |
104 |
1.2mm HD PVC |
2 x large d-rings |
Large |
400 |
1200 |
1320 |
3.1 |
154 |
1.2mm HD PVC |
2 x large d-rings |
XLarge |
500 |
1200 |
1350 |
3.7 |
240 |
1.2mm HD PVC |
2 x large d-rings |
Big Bertha |
600 |
1200 |
1400 |
4.4 |
345 |
1.2mm HD PVC |
2 x large d-rings |
Fender Specifications:
Length (mm) | Height (mm) | Thickness (mm) | Weight (kg) | Approximate Volume (L) | |
Small | 1000 | 600 | 200 | 2.8 | 120 |
Medium | 1000 | 600 | 300 | 3.1 | 180 |
Large | 1500 | 1000 | 300 | 8 | 450 |
As a guide, we recommend every boat should always carry at least 3 fenders onboard (larger boats should carry 4-5). The size of fender mostly depends on the length and design of your boat, but ultimately it comes down to personal preference and how the fenders are going to be used.
Supafend, Wilco and Dan-Fender Size Guide:
Boat Length |
Small |
Medium |
Large |
XLarge |
<6m |
✔️ |
|
|
|
6-8m |
✔️ |
✔️ |
|
|
8-10m |
|
✔️ |
✔️ |
|
10-12m |
|
|
✔️ |
✔️ |
12m+ |
|
|
|
✔️ |
|
Length (mm) |
Height (mm) |
Thickness (mm) |
Small |
575 |
575 |
200 |
Medium |
770 |
575 |
200 |
Large |
1150 |
575 |
200 |
Many customers wish to have their marina berths fully lined with fenders (no gaps) for the protection and the look. To achieve this result, we suggest using Barrier Fenders and taking advantage of the custom sized fender option. We suggest you accurately measure your marina berth and calculate how many 2m fenders you need, and for any leftover space, either use a 1m Barrier Fender or order a Custom Barrier Fender to fit. If you have any questions or are unsure how to do this, please do not hesitate to contact us.
The following suggestions should act as a guide to assist you with deciding how many marina fenders you may need around your berth if you reverse into your berth. The numbers below include 1 or 2 fenders along the pier (across your transom).
You may wish to add an additional fender for protection on the angled corner in your marina berth; but please note the length of this varies from marina to marina and may require a Custom Barrier Fender to achieve a perfect fit.
Berth Size |
Barrier Fenders |
Grand Pacific |
10m |
4 x 2m, or 5 x 2m |
7 x 1.5m |
12m |
5 x 2m, or 6 x 2m |
8 x 1.5m |
14m |
6 x 2m, or 7 x 2m |
9 x 1.5m |
16m |
8 x 2m, or 9 x 2m |
10 x 1.5m |
18m |
9 x 2m, or 10 x 2m |
11 x 1.5m |
20m |
10 x 2m, or 11 x 2m |
12 x 1.5m |
The following suggestions should act as a guide to assist you with deciding how many marina fenders you may need along the finger if you go bow into your berth. It does not allow for fenders on the angled corner or pier at the front of your berth.
Berth Size |
Barrier Fenders |
Grand Pacific |
10m |
3 x 2m, or 4 x 2m |
5 x 1.5m |
12m |
4 x 2m, or 5 x 2m |
6 x 1.5m |
14m |
5 x 2m, or 6 x 2m |
7 x 1.5m |
16m |
6 x 2m, or 7 x 2m |
8 x 1.5m |
18m |
7 x 2m, or 8 x 2m |
9 x 1.5m |
20m |
8 x 2m, or 9 x 2m |
10 x 1.5m |
As a guide, we recommend the following dock line size for your boat. While it ultimately comes down to personal preference, experience tells us most people will choose a larger sized rope for its look, feel and added security. Along with length, the displacement of your boat should also be taken into consideration; heavier boats should use bigger ropes.
Boat Length |
16mm |
24mm (5,600kg) |
28mm (7,300kg) |
32mm (10,500kg) |
<10m |
✔️ |
|
|
|
10-12m |
✔️ |
✔️ |
|
|
12-14m |
|
✔️ |
✔️ |
|
14-16m |
|
✔️ |
✔️ |
✔️ |
16-20m |
|
|
✔️ |
✔️ |
20m + |
|
|
|
✔️ |
Inside New Zealand
Shipping cost can vary between products due to the size and weight of each product. If you wish to know the cost to ship, please add the required products to the cart and proceed through the first steps of checkout. Once the system understands which products you are wanting purchase and where your shipping address is located, the shipping cost will display for you.
Certain products such as the Barrier Pole Fenders, are very large in size and can only be picked up, or contact us directly to arrange shipping pole fenders direct to your marina.
All goods are shipped from either from Auckland or Christchurch (product dependant).
Delivery address must be a physical premises (e.g. residential, commercial, industrial) as we cannot deliver goods to PO Boxes.
Smaller goods are shipped within New Zealand via tracked couriers. Expected delivery is 1-4 working days depending on your location.
Larger goods (e.g. marina fenders) are shipped via freight companies. Expected delivery is 2-5 working days depending on your location.
Outside of New Zealand
All goods are shipped from New Zealand directly to you using DHL Express or a similar airfreight service. Tax, duty and tariffs are not charged on products sold outside of New Zealand. If any are applicable upon importation into your destination country, the shipping company will contact you directly for payment of these on arrival of the products into your country.
Expected delivery is 3-7 working days depending on your location.
For the quickest delivery, your shipping address should be a physical premises. In some cases, a PO Box is also acceptable, but delivery will take longer. If there is an issue with delivering to your PO Box address, we’ll get in touch with you before we ship your goods.
General
While we take as much care as possible with packaging and sending your goods, unfortunately we cannot be held liable for any loss or damage sustained to goods during shipping, but we’ll certainly help out where we can.
If you have any further questions about shipping & delivery, we're here to help.
Call Jacqui on: +64 27 375 8323 or email: jacqui@haurakifenders.com

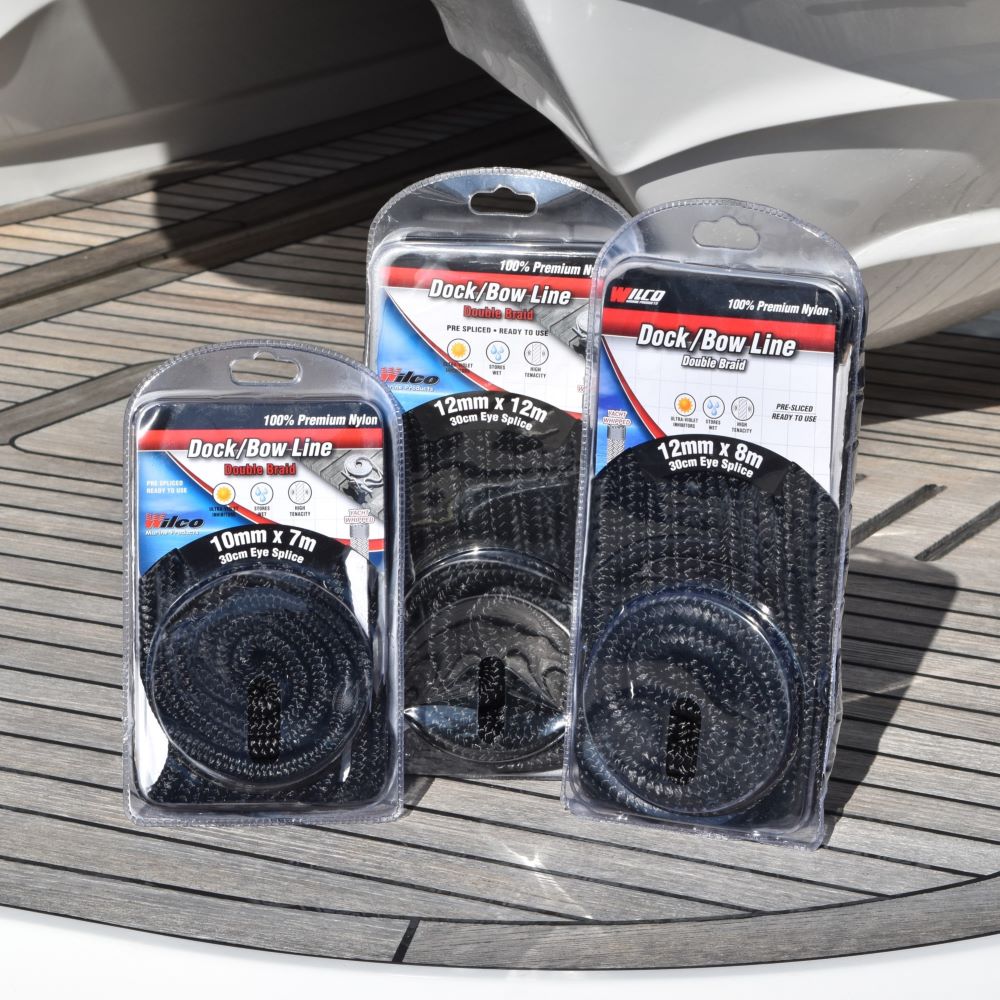

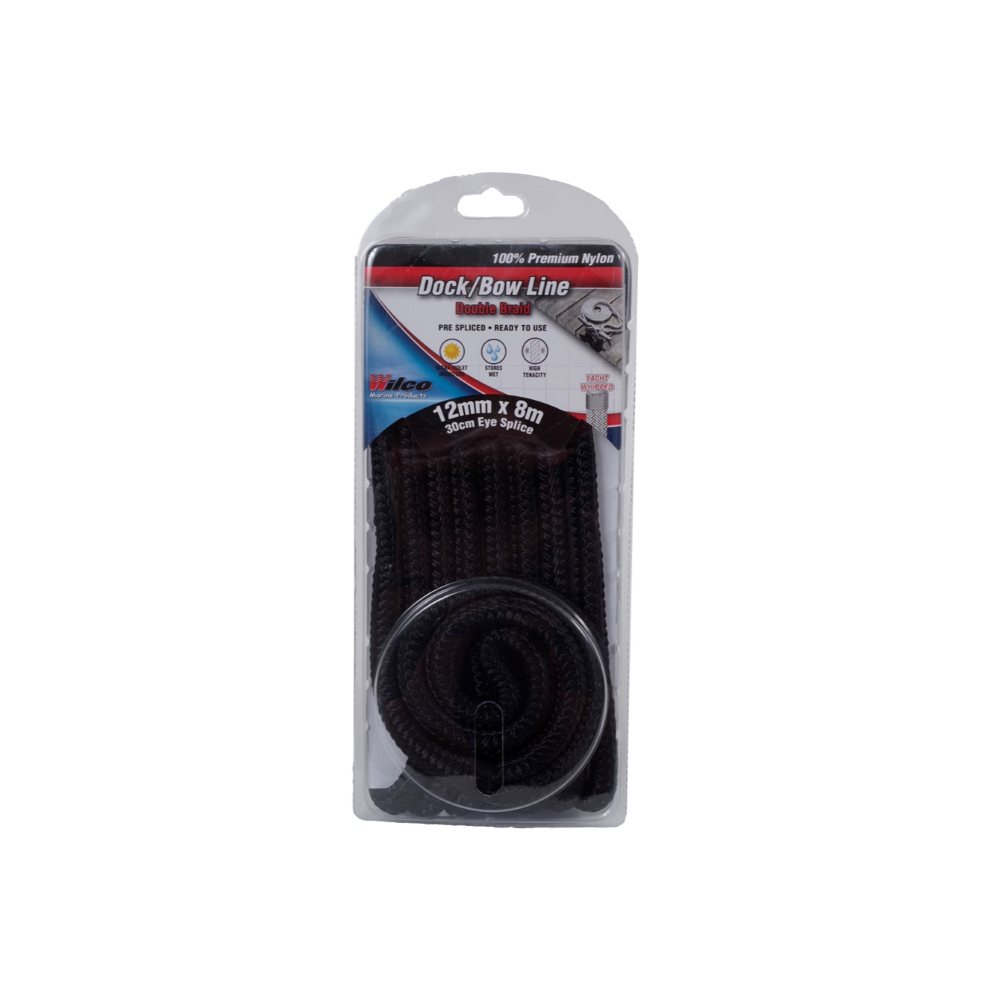

Pre made dock / rafting line - ready to use with an eye splice in one end.
Made from double braided 100% premium nylon line giving the rope superior flexibility & strength required for rafting lines.
Heat sealed on one end with a loop spliced in the other end.
Rope Diameter | Safe Working Load (kg) | Tensile Strength (kg) |
10mm | 336 | 1678 |
12mm | 592 | 2960 |
16mm | 926 | 4630 |
22mm | 1440 | 7200 |
