Grand Pacific Dock Wheels

Size & Quantity Guide
Size

Product Information

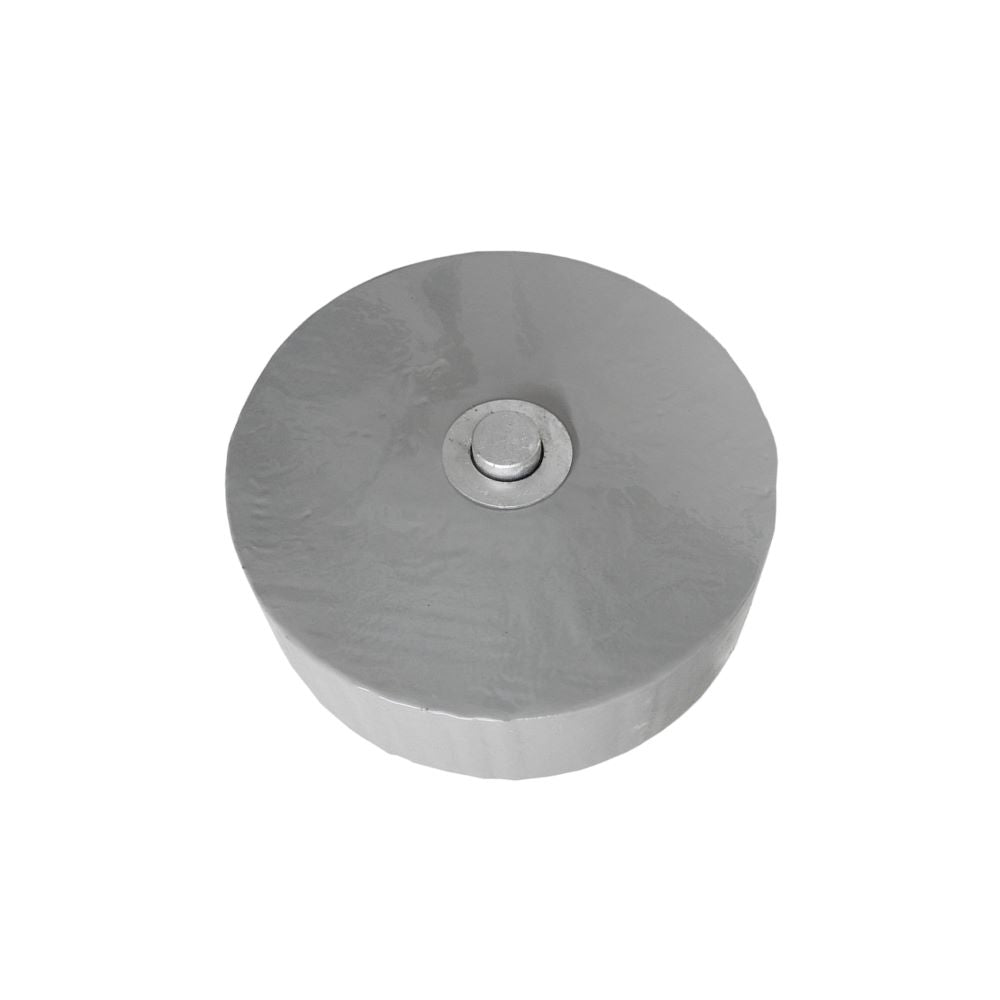

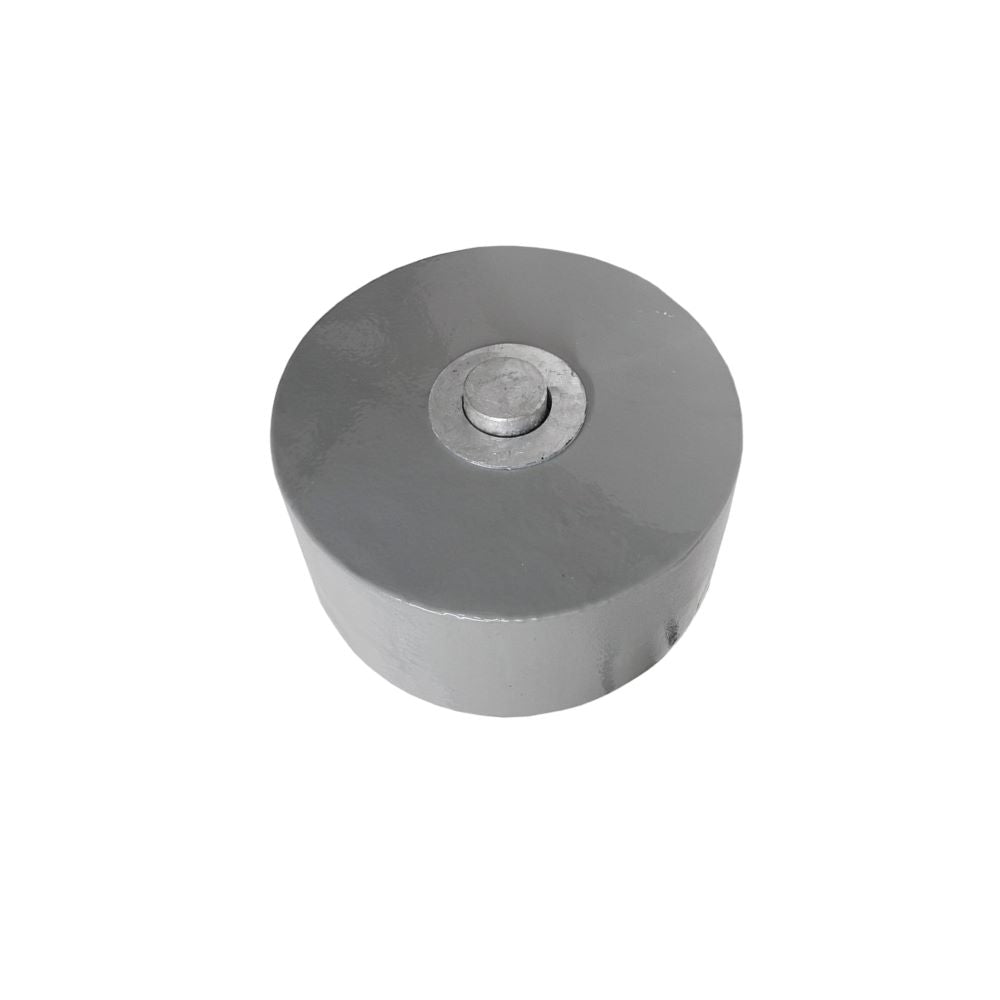

  • The solid foam wheel is polyester coated EVA foam giving good shock absorbing properties and life expectancy.
  • Heavy duty galvanised axle and bracket.
  • Wheel cannot deflate or get punctured.

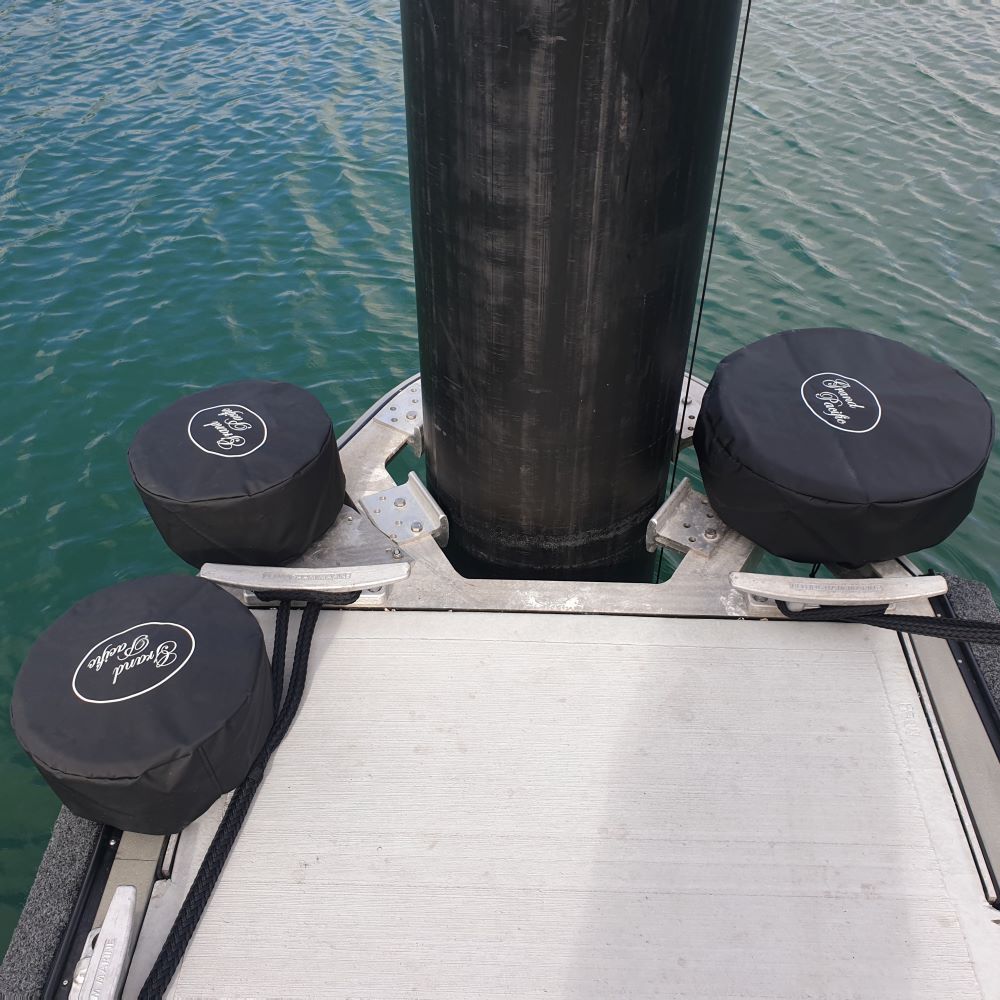

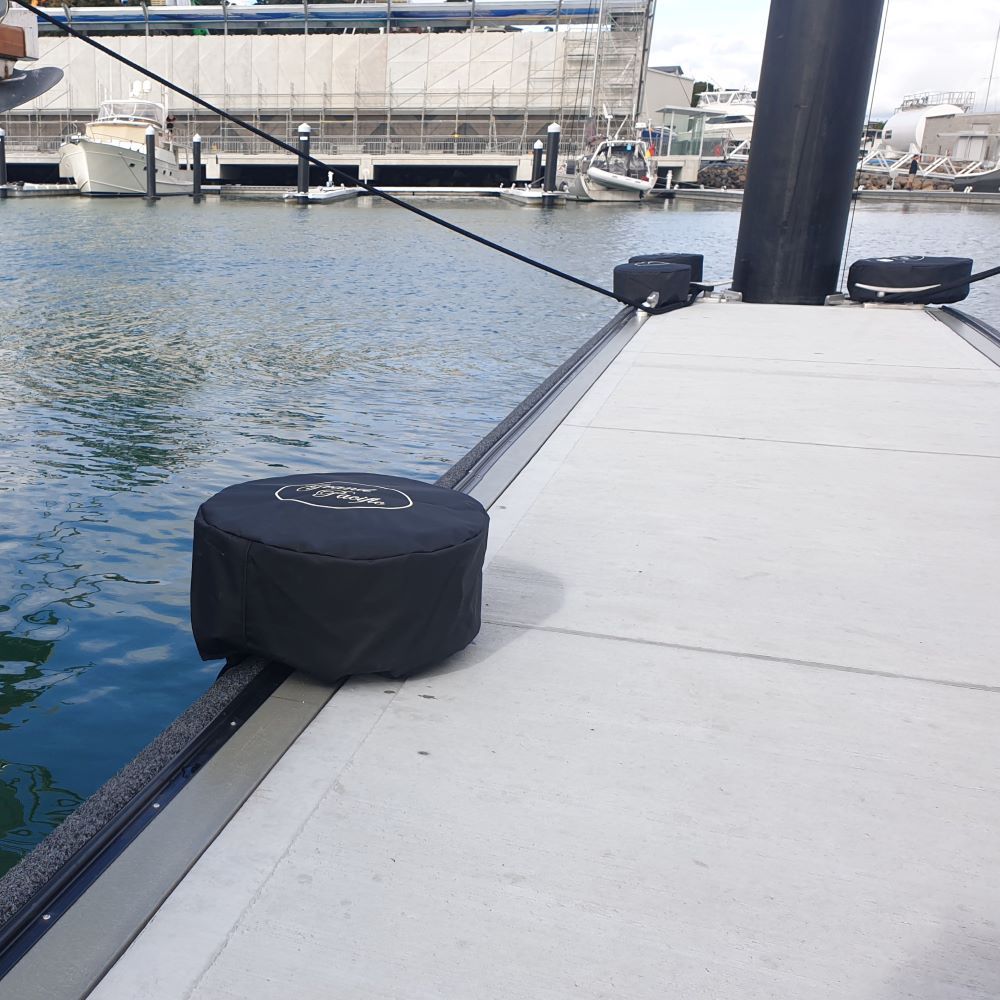

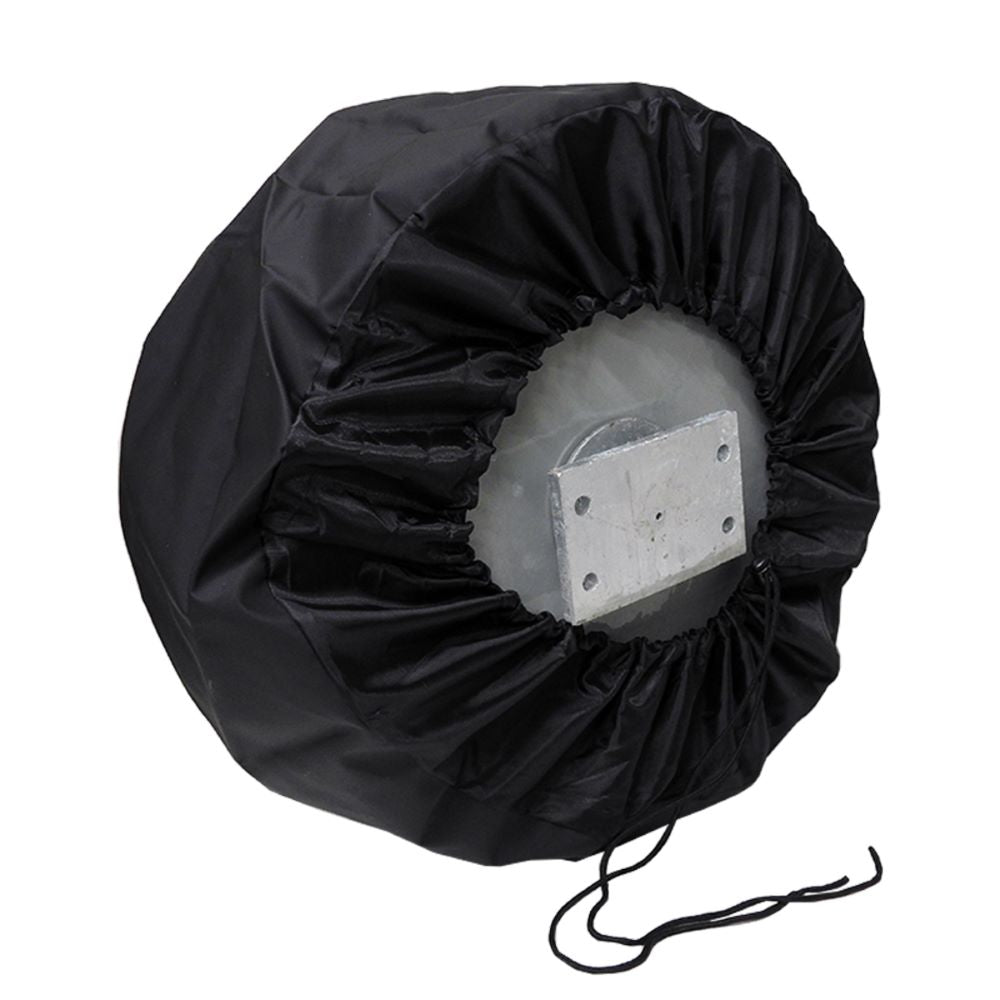

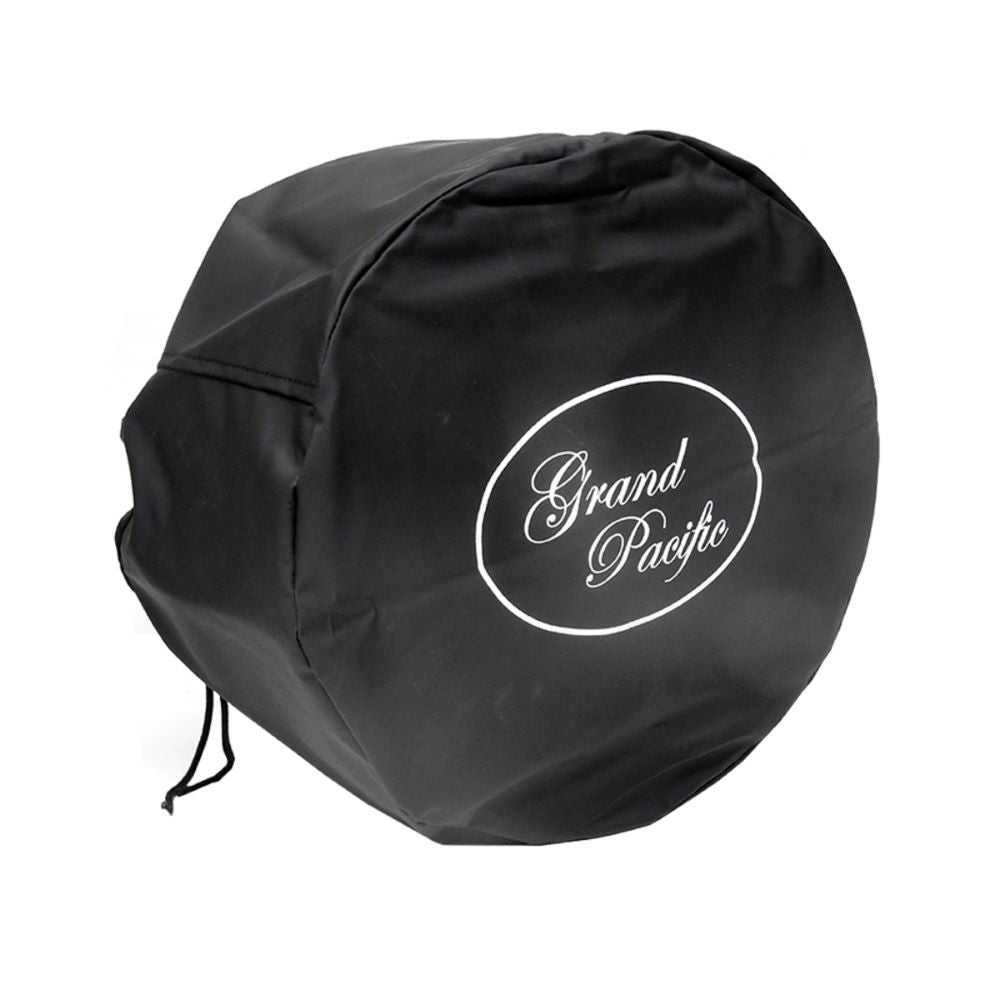

  • Canvas protection cover.



General Information

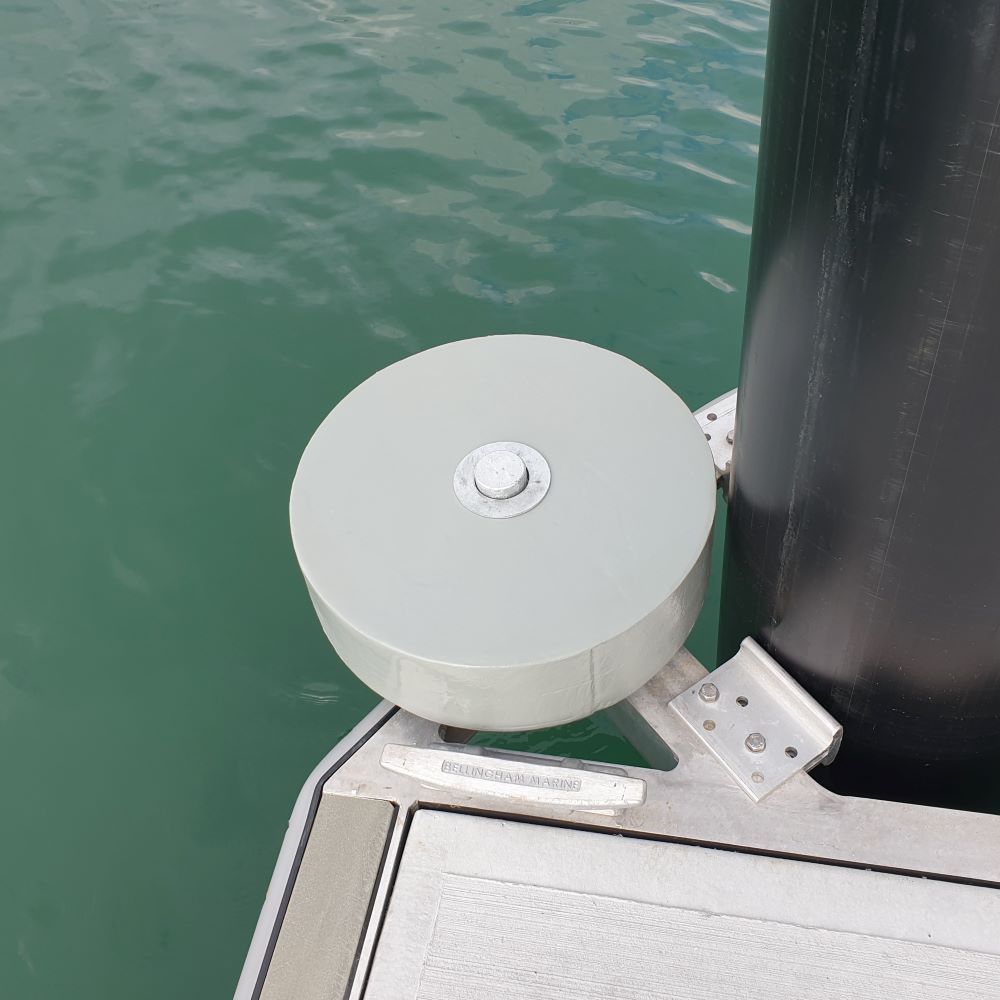

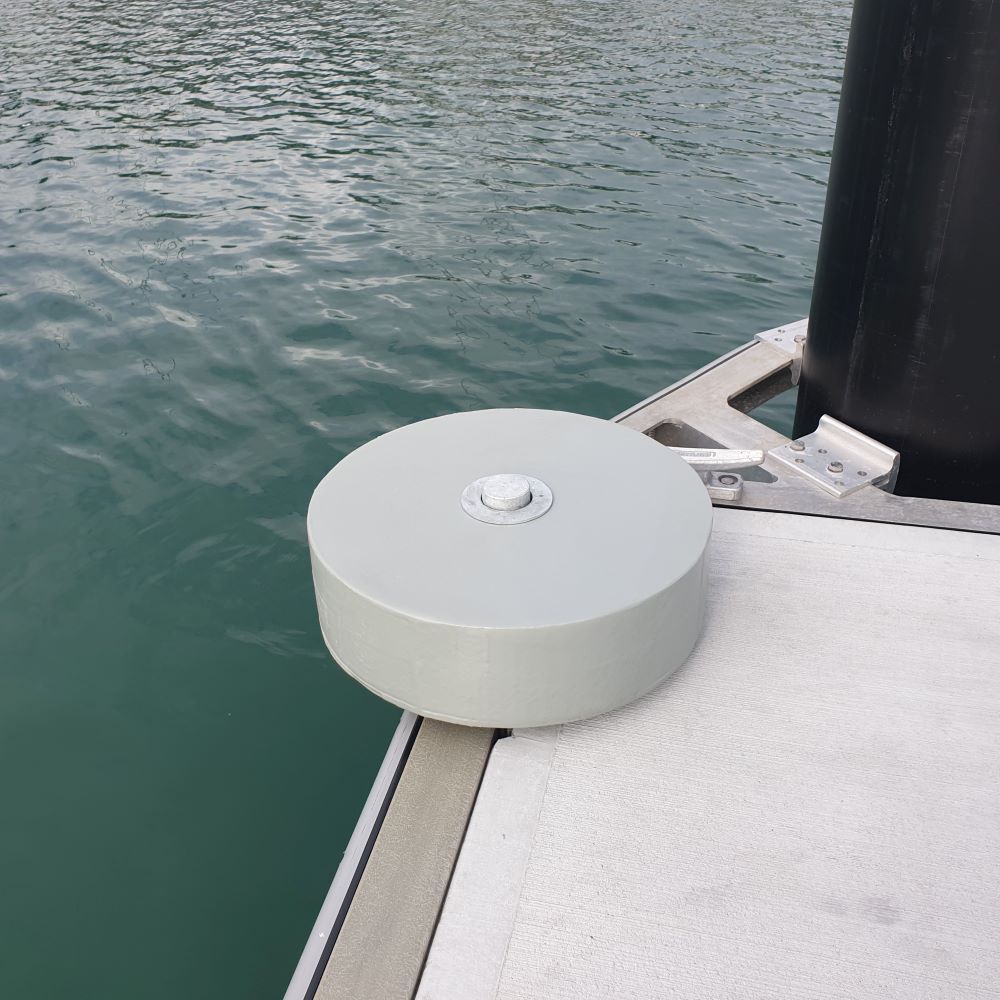

Please note that dock wheels are designed to keep your boat off the corner of a dock or jetty as you pass it, they are not a pivot wheel for leaning your boat against and rotating around it.



To Install a Dock Wheel

  • Unscrew the top cap and remove the wheel from the post.
  • Fasten the base plate to the dock in your chosen position using appropriate fasteners for the substrate and load the wheel will experience from the boat.
  • Reinstall the wheel back on the post and fasten the cap on to keep the wheel in place.



Maintenance

Periodically check the wheel is attached to the dock properly and hasn't been damaged through use.  Check the cap securing the wheel onto the base is tight.



Dimensions

 Dimensions Small Large
Wheel Diameter 350 mm 450 mm
Wheel Height 140 mm 140 mm
Overall Height 185 mm 185 mm
Mounting Plate Size 150 x 100 mm 150 x 100 mm
