Marinaquip Dock Wheels

Notify me when this product is available:

Shipping & Delivery

Shipping cost can vary between products due to the size and weight of each product. If you wish to know the cost to ship, please add the required products to the cart and proceed through the first steps of checkout. Once the system understands which products you are wanting purchase and where your shipping address is located, the shipping cost will display for you.

Certain products such as the Barrier Pole Fenders, are very large in size and can only be picked up, or contact us directly to arrange shipping pole fenders direct to your marina.

All goods are shipped from either from Auckland or Christchurch (product dependant).

Delivery address must be a physical premises (e.g. residential, commercial, industrial) as we cannot deliver goods to PO Boxes.

Smaller goods are shipped within New Zealand via tracked couriers. Expected delivery is 1-4 working days depending on your location.

Larger goods (e.g. marina fenders) are shipped via freight companies. Expected delivery is 2-5 working days depending on your location.

While we take as much care as possible with packaging and sending your goods, unfortunately we cannot be held liable for any loss or damage sustained to goods during shipping, but we’ll certainly help out where we can.

If you have any further questions about shipping & delivery, we're here to help.

Call Jacqui on: +64 27 375 8323 or email: jacqui@haurakifenders.com

Product Information

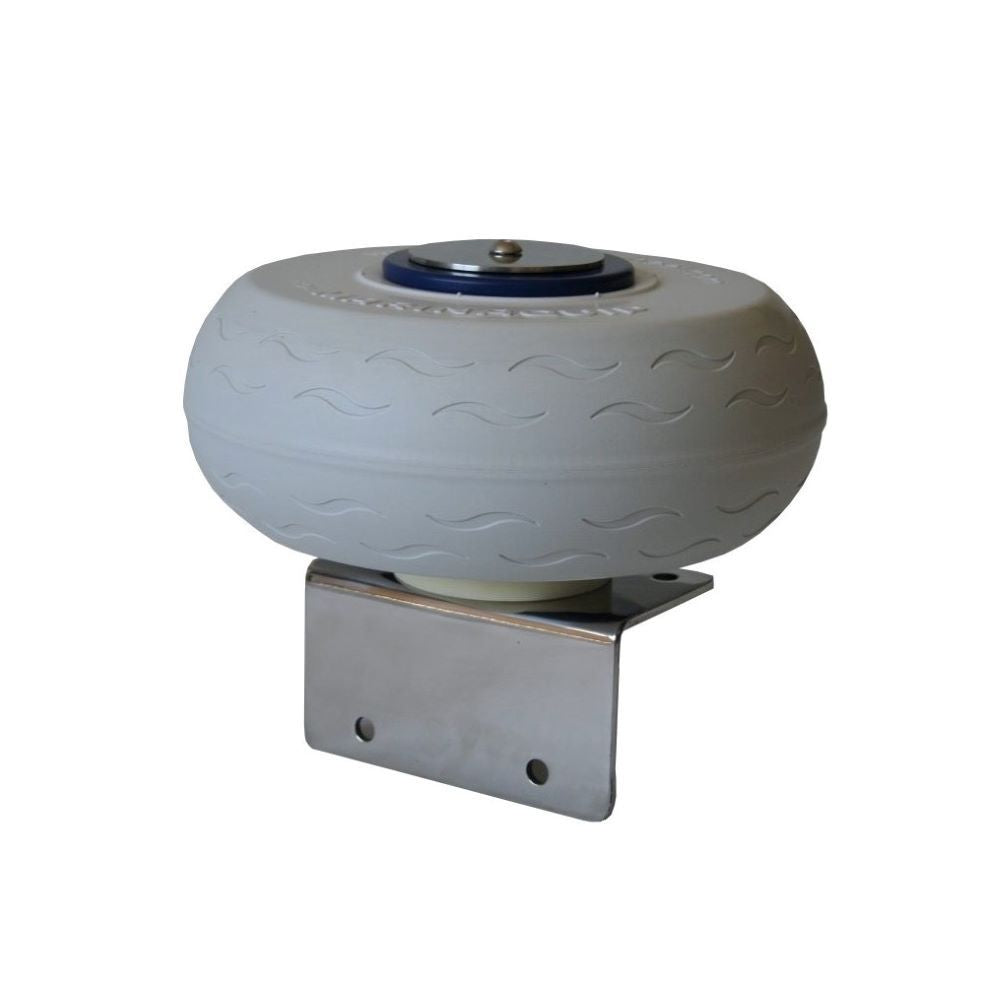

  • High density polyurethane wheel molded over a polyethylene wheel rim.

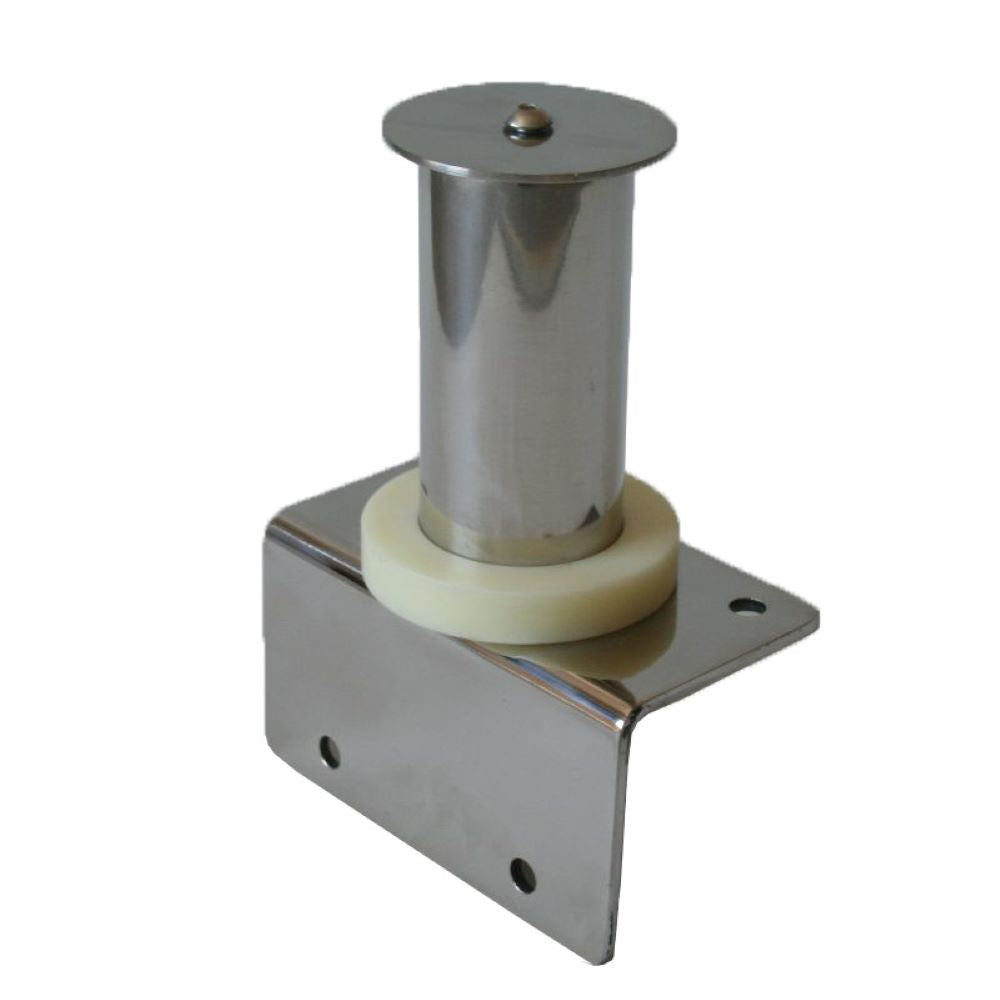

  • Highly polished 316 stainless steel axle and bracket.

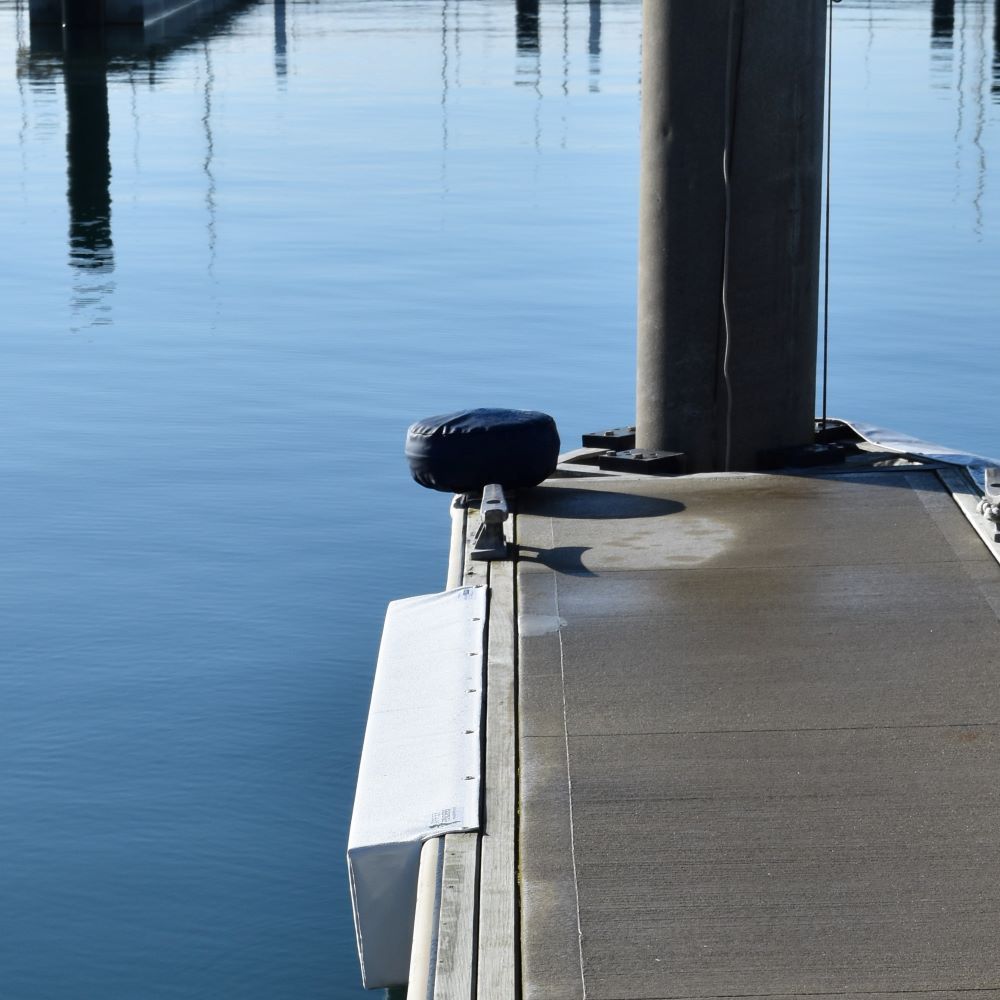

  • Blue protection cover.
  • Cannot deflate, go flat or puncture.
  • Anti-lift plate ensures the wheel stays in position.
  • Large 75mm diameter axle and 6mm bracket plate do not require greasing.
  • Dual axis fastening allows the dock wheel to be fastened to the dock from the top and side, giving a stronger and more reliable installation.



General Information

Please note that dock wheels are designed to keep your boat off the corner of a dock or jetty as you pass it, they are not a pivot wheel for leaning your boat against and rotating around it.



To Install a Dock Wheel

  • Unscrew the top cap and remove the wheel from the post.
  • Fasten the base plate to the dock in your chosen position using appropriate fasteners for the substrate and load the wheel will experience from the boat.
  • Reinstall the wheel back on the post and fasten the cap on to keep the wheel in place.



Maintenance

Periodically check the wheel is attached to the dock properly and hasn't been damaged through use.  Check the cap securing the wheel onto the base is tight.



Dimensions

 Dimensions One Size
Wheel Diameter 330 mm
Height Above Dock 175 mm
Axle Diameter 75 mm
Mounting Plate Size 200 x 100 x 100 mm
Weight 7 kg
